HydroTAC Whole-Home System – Water Filter & Conditioner
HydroTAC® provides a salt free water system alternative to normal water softeners. Through Template Assisted Crystallization (TAC)® treatment, water is treated without applying any chemicals or salt. HydroTAC®, while compact in size, can reduce chlorine and other chemical with its revolutionary high flow dual stage activated carbon block filtration process.
HydroTAC® is proven to remove and prevent up to 99.6% of scale through multiple independent studies. The innovative TAC® technology reduces maintenance frequency and cost, extending the life of all your water heating devices & pipes.
Activated carbon treatment is the most studied treatment for PFAS removal and has been proven to reduce PFAS chemicals. Our activated carbon block will bind to and reduce many contaminants, improving the quality of your water from every faucet.
Benefits/Positives
- Leaves in beneficial minerals
- No need for salt or corrosive chemicals
- Removes existing scale deposits
- Longer life expectancy for appliances
- Lasts up to 3 years without having to replace
- “Greener” filtration without wasting any water
Product Includes

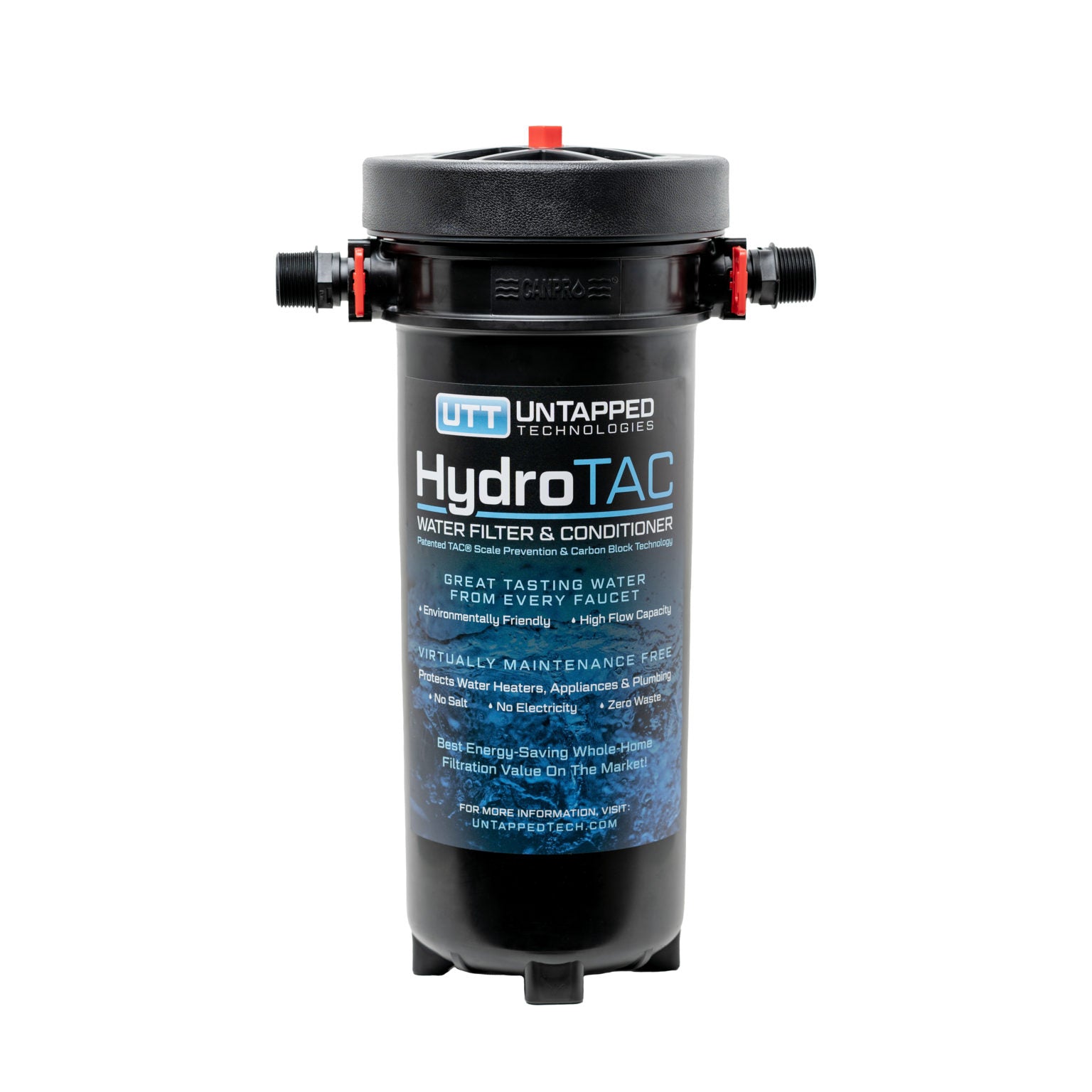

Housing and Head Assembly

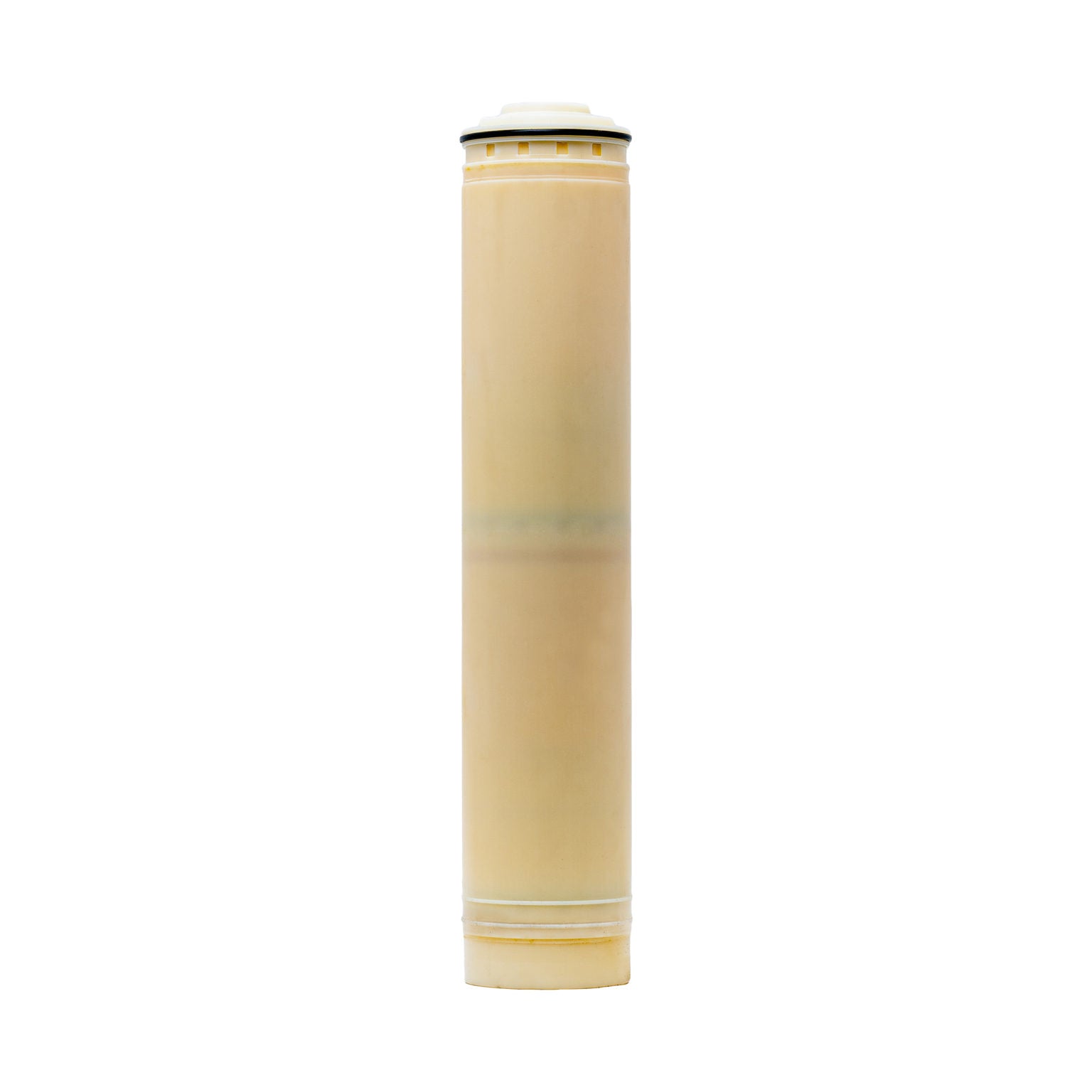

TAC® Scale Prevention Filter Cartridge

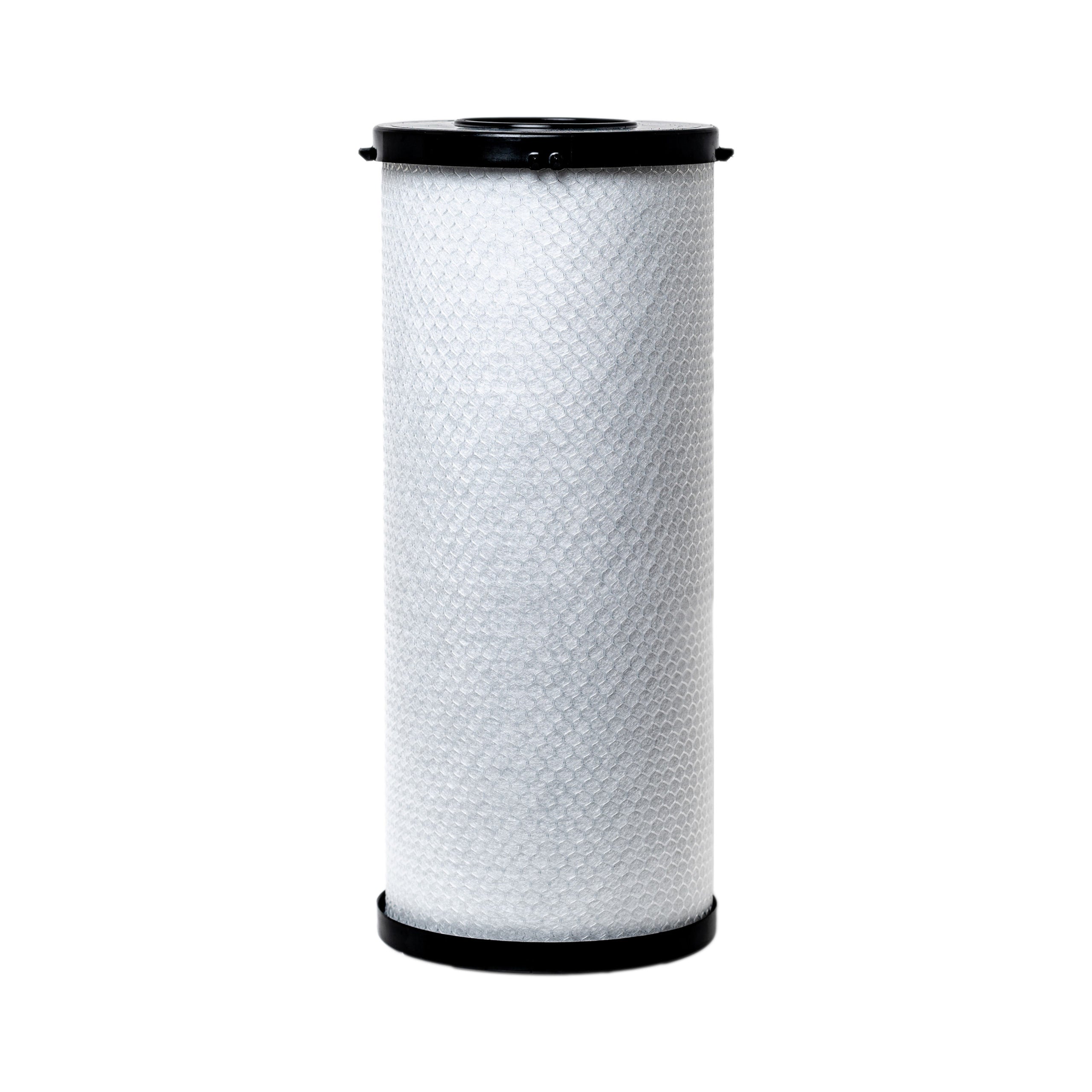

Radial Flow Carbon Block Filter Cartridge
Inlet / Outlet Red Adapter Locking Pins (x2)
1-in NPT Inlet / Outlet Adapters (x2)
Outlet Connector
Multifunction Tool
System Mounting Bracket
Pressure Relief Valve
SPECIFICATIONS
| Rated Flow | Maximum 10 gpm (37.8 lpm) |
| Working Temp | 40 – 104 °F (5 – 40 °C) |
| Working Pressure | 10 – 90 psi – a pressure limiting valve must be installed when pressure exceeds 70 psi. |
| Working Conditions | For indoor use – protection required when installed outdoors. |
| Size | 9 in x 9 in x 19 in |
| Min Net Weight | 16.6 lbs (7.5 kg) |
| Contaminants Reduced | Scale, Sediment, Other Chemicals, Chlorine Taste and Odor |
CONDITIONS FOR USE
| pH | 6.5 to 8.5 |
| Max Hardness | 75 grains per gallon |
| Chlorine | < 3 ppm |
| Iron, Ferrous | ≤ 0.3 mg/L |
| Manganese | ≤ 0.05 mg/L |
| Copper | ≤ 1.3 mg/L |
| Oil & Phosphates | zero* |
| Hydrogen Sulfide | zero* |
Influent water must not exceed these levels.
*Must be removed prior to HydroTAC®.
Replacement filters: SMF 7100639 and SMF 7100640
Dimenssions: 9' D × 9' W × 19.2' H
Product #: WD 7100638
