Luminor Rainier 85 gpm Light Commercial UV System LR6-855

Luminor Rainier 85 gpm Light Commercial UV System LR6-855

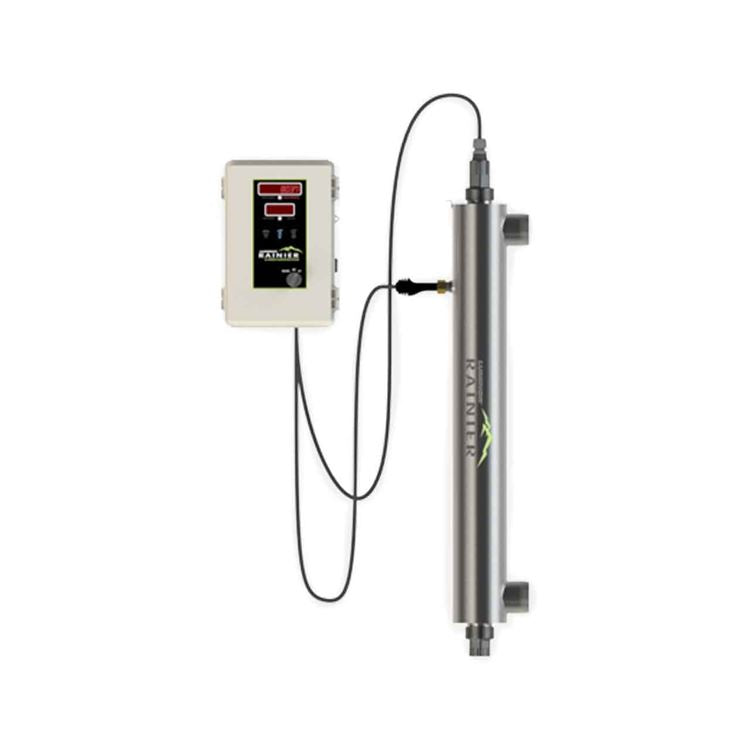

This Genuine LUMINOR RAINIER LR6-855 is a light COMMERCIAL/INDUSTRIAL High Flow UV System designed to provide the ultimate protection against microbiological threats such as e-coli and coliform bacteria. The RAINIER LR6 series of UV systems incorporates high quality low pressure, amalgam (LP-AM) coated UV lamps offering a consistent output throughout their12,000-hour life. This system features a discrete 254nm Teflon™-based UV sensor, continuous LED display lamp life monitoring, axial flow, 316L polished stainless steel reactors manufactured to ASME standards with 85 gpm flow rate at 95% UVT at a dose of 30mJ/cm².

Luminor RAINIER 6.0 Light Commercial UV Applications:

• DISINFECTION: Choose Your Required Dose for Applications that Include Restaurants, Nursing Homes, Campgrounds, Agricultural, Food Services, Schools, Marine, ect.
• HOT WATER (HW): For Use in Hot Water Applications Including Recirculation Loops, Showers, Cooling Towers, ect., Designed for the Reduction of Legionella.
• LOW UVT (50): For Applications where Water Quality may Approach 70% UVT or Less, Choose the Low UTV Systems to Increase the Operational Performance and Reduce Nuisance Alarms.
• TOC: For the Reduction of TOC (Total Organic Carbon) using UV Lamps at 185 nm Output.

✔️ HIGH OUTPUT 85 GPM capacity in a small package

✔️ Available in 110V/60Hz. or 230V/50-60Hz (IEC power cords required) MUST specify voltage when ordering

✔️ VERTICAL or HORIZONTAL INSTALLATION simplifies installation based on space requirement

✔️ MADE IN CANADA quality for long life

✔️ LAMP COUNTDOWN TIMER for lamp replacement reminder

✔️ LONG 12,000 HOURS OR 500 DAYS LAMP LIFE for long lamp change intervals.

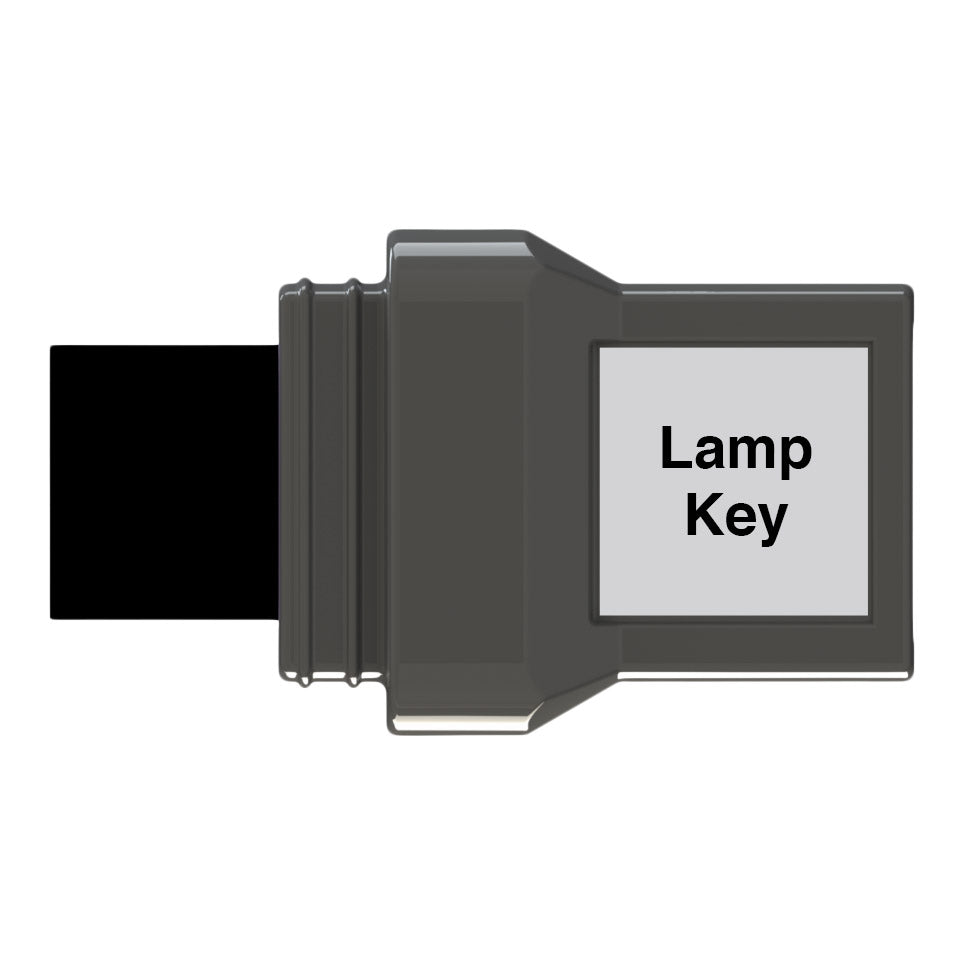

✔️ LUMINOR’s LUMI-LOC™ LAMP CONNECTOR. Lamp changes with an effortless ¼ turn of the Connector

✔️ VISIBLE and AUDIBLE ALARM for lamp change and Lamp Out notifications

✔️ EASY DIY INSTALL AND MAINTENANCE to save you money.

✔️ HEAVY GAUGE 316LSS COMMERCIAL STEEL MANIFOLD for long life

✔️ 2.0” FNPT INLET and OUTLET CONNECTIONS for plumbing versatility.

✔️ 220 WATTS POWER CONSUMPTION for economical operation

✔️ SS REACTOR DIMENSIONS – 4” x 47” x 7” compact, will fit anywhere

✔️ 10/3/1 YEAR WARRANTY – 10 years on the SS Reactor, 3 years on the electronics, 1 year on UV lamp and Sleeve.

✔️ COMPATIBLE OPTIONS:  UV sensor module, remote monitoring cable

Please Note: ** 2-4 WEEKS LEAD TIME TO SHIP THIS UNIT

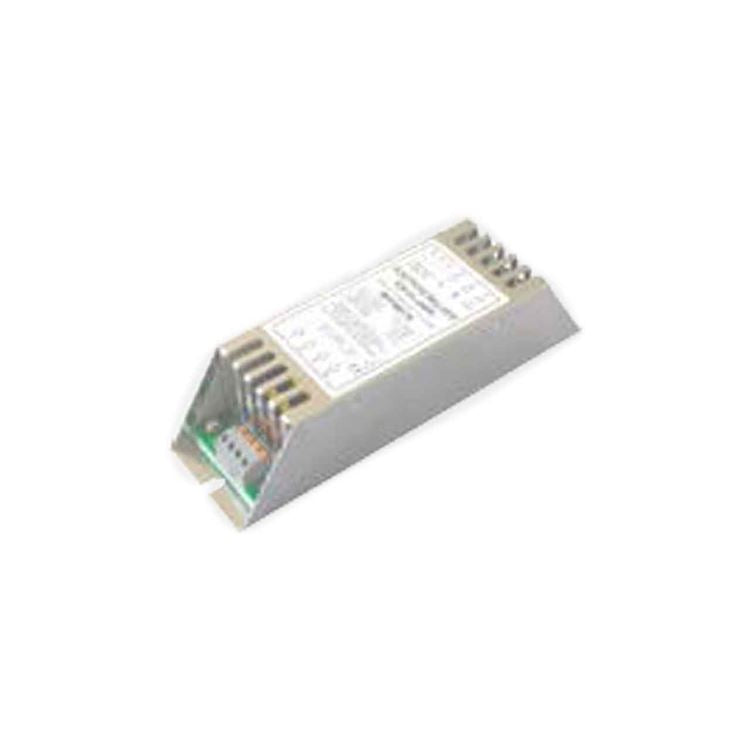

Replacement LAMP: RL-1000A, Sleeve: RQ-1000, Controller: RB-R1.2

Product # UVS LR6-855
