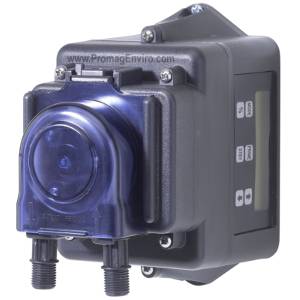

Stenner Econ FP Series Injection Pump E20PHF71S

Stenner Econ FP Series Injection Pump E20PHF71S

The Econ FP is a flow activated pump; it accepts either a dry contact signal or a 12-24 VAC/VDC signal from any control equipment that responds to flow. The functions are easy to program on the six button control pad with a backlit LCD window.

• Type: Externally paced peristaltic
• Output: 4.5 GPD
• Pressure: 80 psi
• Electrical: 120 VAC 60 Hz
• Power Cable: 6' power cord
• Tubing: 1/4' white tubing
• Material: Santoprene tube
• Signal: Dry contact pulse input
• Weight: 4 lbs

Product Code  PRT E20PHF71S
