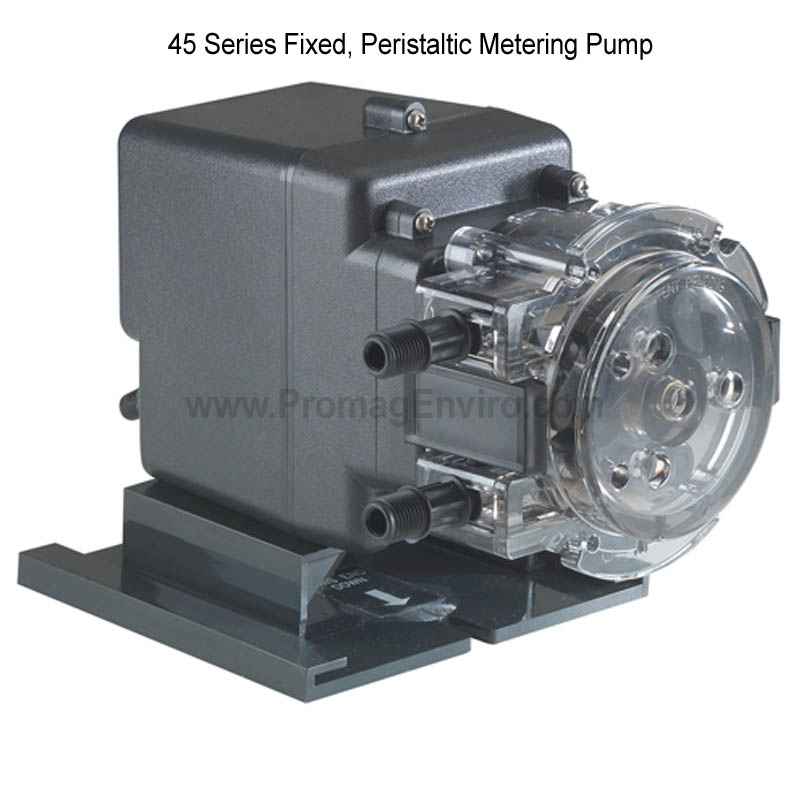

Stenner 45MPHP2 Single Head Fixed Output High Pressure Pump 120V, 1/4

STENNER PUMP #1T 3GPD 120V 1/4' SINGLE HEAD FIXED HIGH PRESSURE

This peristaltic metering pump injects solutions at a fixed rate. It can be activated by a water meter for proportional feed for drinking water disinfection.

All Stenner metering pumps have a 3-point roller design in the pump head, which acts as a check valve to prevent back flow, siphoning, overdosing and loss of prime. The chemical solution in the pump tube is captured between the rollers as they rotate and compress the tube. As the rollers advance, the squeezed tube section regains its original form and generates a vacuum, creating the self-priming feature that delivers a constant flow unaffected by the outlet pressure.

• Fixed Output (GPD): 3.0
• RPM: 26
• Motor HP: 1/30
• 6' power cord attached
• Shipping Weight is 8 pounds
• Dimensions are 8' x 6' x 5.3'
• The Stenner 45MPHP2 Pump uses a #1 Tube

Product Code:  PMP 45MFH1A1S
