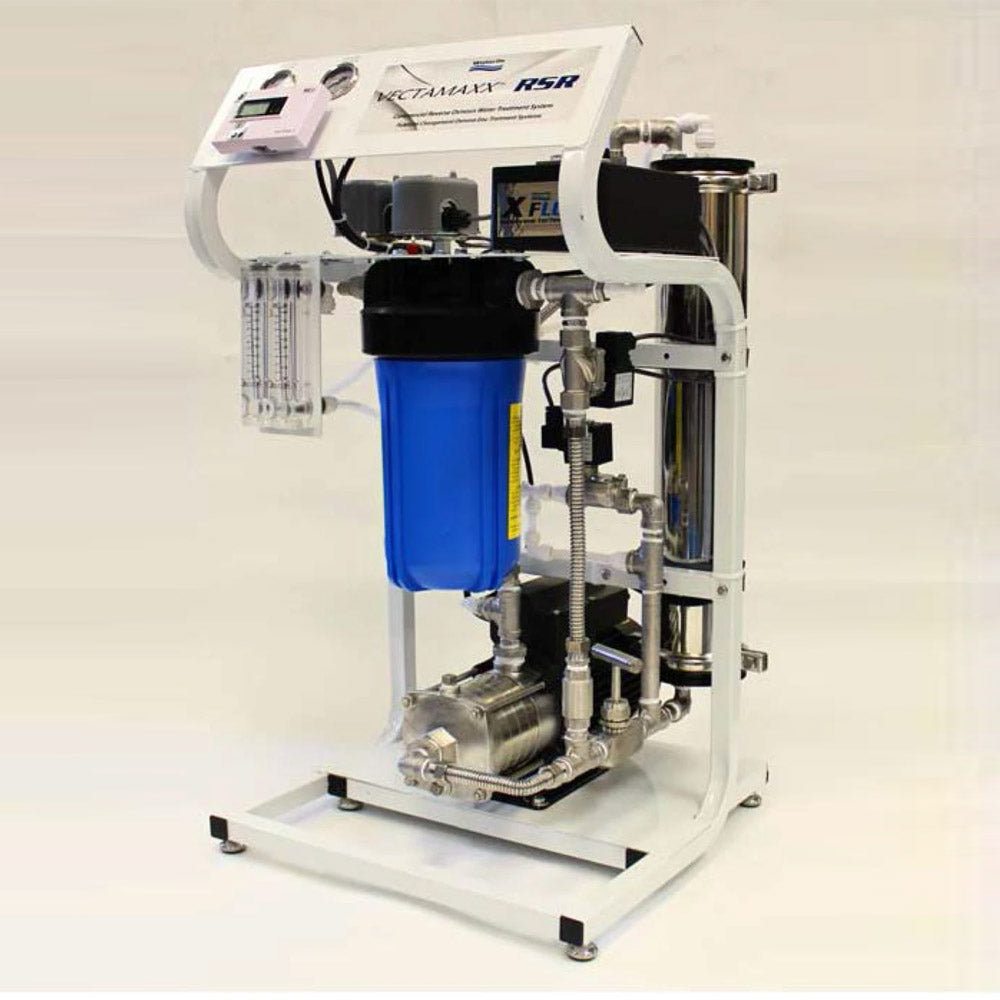

Waterite Vectamaxx RSR 1200 GPD Reverse Osmosis System

Waterite Vectamaxx RSR 1200 Reverse Osmosis System

Rated for 1200 gallons per day production of Reverse Osmosis Water

VOLTAGE: 110VAC/60hz, 12 A
White enamel mild steel frame, rubber leveling feet
FRAME DIMENSIONS:
Height 34.5” (88 cm)
Width 19' (48 cm)
Depth 19.5' (49.5 cm)
FEED WATER INLET: 1/2”
WASTE WATER OUTLET: 1/2”
PRODUCT WATER OUTLET: 1/2”
LOW PRESSURE SWITCH: 110VAC/60hz, low cut-out @ 15 psi
DRIVE PUMP MOTOR: 115VAC/60hz, ¾HP Horizontal multistage centrifugal pump, non self-priming, co-axial pump/motor design. All parts in contact with liquid are stainless steel.
RECIRCULATION VALVE: SS needle valve, metal seated, o-ring packing
SYSTEM FITTINGS: Stainless Steel
PREFILTRATION HOUSING: 1 X Polypropylene, 10”x4”,
FILTER CARTRIDGE: Melt-blown spun polypropylene, 5-micron
MEMBRANE HOUSING: 304 SS body, Noryl caps, band clamp closure, ¾” FNPT concentrate ports, ½” permeate port, 250 psi rating
Complete specifications below
(shown with optional TDS meter available below)
