Viqua Arros 22-IHS22 Whole Home UV Water Treatment System

2000.00
2353.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

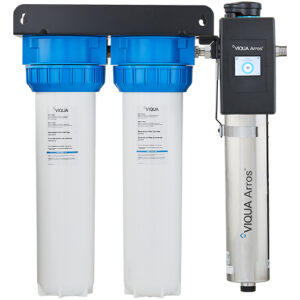

          Arros 22-IHS22 Whole Home UV Water Treatment System

          Product Details

          The VIQUA Arros is the premium residential UV system from VIQUA. Innovative chamber design, integrated pre-filtration, pre-mounted controller, and high-output UV lamp technology form a compact unit for a clean installation. Replacement Lamp/Sleeve is VA22LU

          Reduced Installation Complexity
          • The Tidal™ chamber aligns the inlet and outlet ports on a single plane, saving time and material.
          • PolyProtect™ shield blocks UV light so the Arros UV can plumb directly to PEX and other polymer materials.
          • System mounting is simplified with an elongated steel bracket.

          		Ease of Maintenance
          • The all-in-one design of the VIQUA Arros lamp unit is easier to handle.
          • Threaded plug for quick, clean draining.
          • Easy-to-navigate LCD touchscreen to identify replacement part and dealer contact information.
          Optimized Treatment Performance
          • Equipped with Stream™ technology which allows for more accurate in-lamp usage measurement.          		Space Efficient
          • The improved dose efficiency results in a more compact UV chamber and lamp.

          Integrated Pre-filtration
          • Premium 3-piece filter housing provides seamless
          filter replacements.
          • Comes with a sediment filter to remove commonly found particles in water and a carbon block filter to reduce unpleasant odors and color.

          		Application
          • Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications.

          The VIQUA Arros has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate Cryptosporidium, Giardia, Escherichia coli (E. coli), and fecal coliform.

          Features & Specs

          Connection SizeInlet: 1” FNPT, Outlet: (Combo Port) 1” MNPT / ¾” FNPT
          Dimensions24.95″ × 27.5″ × 9.0″ (63.4 cm × 69.9 cm × 22.9 cm)
          Flow Rate30mJ/cm2: 22 gpm (83.3 lpm) 5.0 m³/hr
          Housing DetailsTwo 20″ 3-piece housings
          Power Consumption60 W
          Ship Wt. (lbs)50lbs (20.9kg)



          Special order item. Lead time for every order is 2-3 weeks

          Replacement Lamp/Sleeve is VA22LU

          Replacement Filter: CMB-520-HF and C2-02PB

          Part Number: ARROS22-IHS22
