Waterite Vectamaxx RSL HP 9600 gpd Reverse Osmosis System

Waterite Vectamaxx RSL HP 9600 gpd High Pressure Reverse Osmosis System for Brackish water.

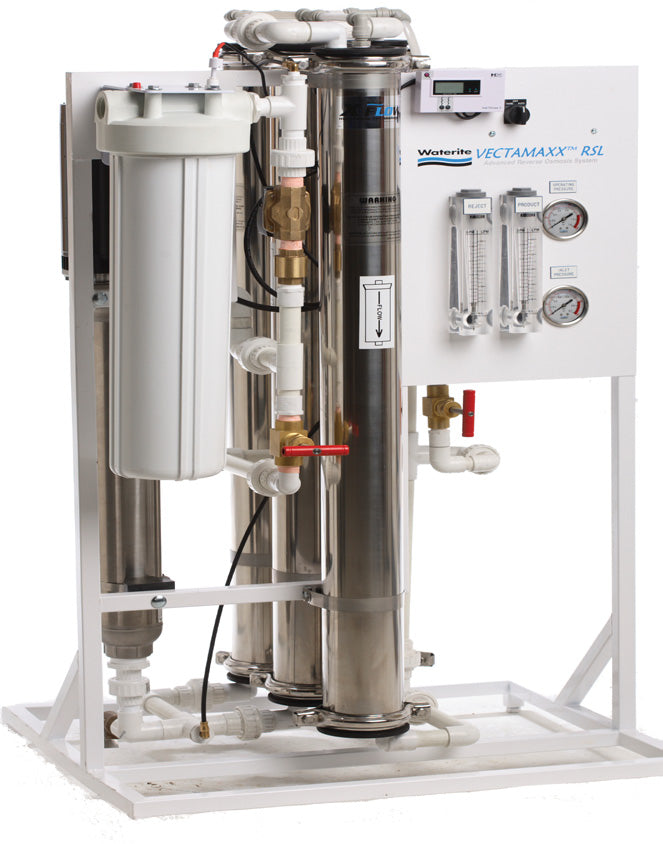

Please note: product is not exatly as shown in image.  This model has four membranes.

A. GENERAL SPECIFICATIONS
TYPE: Standard pressure RO, spiral wound
membrane(s) in series, recirculation loop
VOLTAGE: 220VAC/60hz (other voltages available on
request)
SERVICE AMPS: 230/208VAC
RSL HP 9600 10.3/11.3
FEED WATER PRESSURE: 30 psi minimum, 70 psi maximum
FEED WATER TEMP: 40º C maximum

B. MATERIAL SPECIFICATIONS:
FRAME COLOUR: White powder coat
FRAME MATERIAL: Aluminum 1' Square Tube, leveling feet
Height 50' (127cm)
Width 31' (79cm)
Depth 24.0' (62cm)
OPERATING PRESSURE: 230 psi (15.9 bar)

MEMBRANE: BLACK MAX®, spiral wound TFC, BME-
4040S, 2000 USGPD permeate @ 2000 mg/l
NaCl, 225 psi, 25ºC feed
UNIT DRY WEIGHT:
RSL HP 9600: 181 lbs. (82.1 kg)
INLET SOLENOID: 220VAC/60hz, normally closed
LOW PRESSURE SWITCH: 220VAC/60Hz cut-out @ 15 psi
DRIVE PUMP MOTOR: 230VAC/60hz, type 56J frame, 3450 RPM,
threaded shaft, ball bearing
DRIVE PUMP: Multi-stage 416SS, stainless discharge,
housing and bracket, Noryl impellers and
stages, SS bearings, wear rings, couplings and
pump shaft.
RSL9600: 13.0 USGPM @ 200 psi
(Based on 0 psi inlet pressure)
CONCENTRATE VALVE: Brass needle valve, internally bypassed, metal
seated, o-ring packing
RECIRCULATION VALVE: Brass needle valve, metal seated, o-ring
packing
SYSTEM FITTINGS: Schedule 40 PVC
LOW PRESSURE FITTINGS: Jaco standard pressure compression or DMT push-on
LOW PRESSURE TUBING:  1/2” HDPE, clear
PRE-FILTRATION HOUSING: 1 X Polypropylene, 20”, 125 psi rated, o-ring
seated with threaded cap, pressure release, 1”
inlet/outlet, full flow, 20 USGPM maximum
FILTER CARTRIDGE: Polypropylene, 5-micron
MEMBRANE HOUSING: 304 SS body, polyethylene caps, band clamp
closure, ¾” FNPT concentrate ports, ½”
permeate port, 300 psi rating (optional)
PRESSURE GAUGES: Glycerin filled, stainless body, 2 1/2’’. 0-100
psi pre-filter pressure pre/post, 0-300 psi
system pressure
FLOW METERS: Acrylic panel mounted, 0.5-5.0 USGPM or 1.0 -
10.0 USGPM, dependent on model
HIGH PRESSURE RELIEF VALVE:
Watts model 500C, bronze body, set at 250 psi

PERFORMANCE SPECIFICATIONS
PERMEATE PRODUCTION
RATE: RSL HP 9600 5.6 USGPM (21.2 LPM)
Calculated production rate @ feed water of 500 mg/l NaCl, 25ºC, average
system pressure @ 235psi, 60 % recovery, inlet pressure of 50 psi.
WASTE PRODUCTION RATE:
Recovery Rate @ 60%
Feed Water <1000 TDS  RSLHP9600 3.7 USGPM (14 LPM)
Recovery Rate @ 40%
Feed Water >1000 TDS RSLHP9600 8.4 USGPM (31.8 LPM)
MEMBRANE CROSSFLOW: (1) 8 USGPM (30.3 LPM)
(2) 8 USGPM (30.3 LPM) (3) 6.6 USGPM (25 LPM) (4) 6.6 USGPM (25 LPM)

RECOMMENDED FEED WATER PRETREATMENT SPECIFICATIONS:
TDS: < 4000 TDS
HARDNESS: < 6 gpg (103 mg/l)
TOTAL IRON: < .05 ppm
TANNIN: < .5 ppm
CHLORINE: < .1 ppm
pH: 5.5 – 9.5
ORGANIC/MICROBIOLOGICAL ACTIVITY: 0
MANGANESE: <.05 ppm
HYDROGEN SULPHIDE: 0
TURBIDITY: SDI < 5.0
E. FEED WATER REQUIREMENTS:
RSL9600: 14 USGPM minimum.

OPTIONAL EQUIPMENT
Panel mount Permeate TDS monitor
Panel mount Dual Feed/Permeate TDS monitor

All materials and components used to fabricate RSL Series systems meet
or exceed requirements specified by NSF Standard 61

R/O RSL9600HP

Please note:  These systems are built to order so allow 6-8 weeks for delivery.  Also since these are built to order, all sales are final.
