Waterite Vectamaxx RSLHP4800 gpd Reverse Osmosis System

Waterite Vectamaxx RSLHP4800 gpd High Pressure Reverse Osmosis System

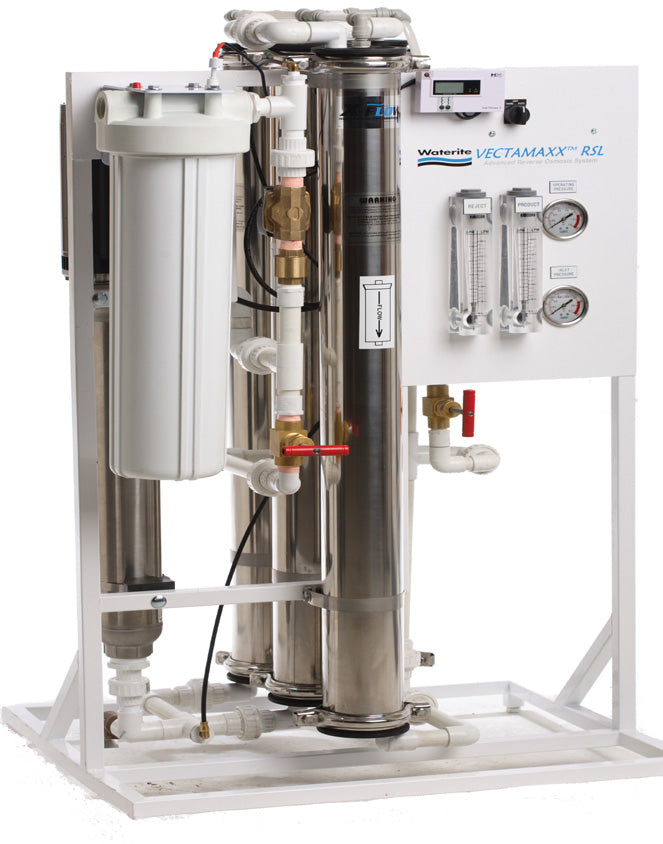

Please note: Not exactly as shown.

GENERAL SPECIFICATIONS TYPE: Extra Low pressure RO, spiral wound membrane(s) in series, recirculation loop

VOLTAGE: 230VAC/60hz (other voltages available on request)

SERVICE AMPS: 230VAC RSLHP4800 10.3 VAC

FEED WATER PRESSURE: 30 psi minimum, 70 psi maximum

FEED WATER TEMP: 40º C maximum

MATERIAL SPECIFICATIONS: FRAME COLOUR: White powder coat

FRAME MATERIAL: Mild steel square tubular, c/w leveling feet

FRAME DIMENSIONS: Height 50' (127cm) Width 31' (79cm) Depth 24.0' (62cm) OPERATING PRESSURE: 230 psi (9.1 bar) for RSLHP4800

MEMBRANE: BLACK MAX®, spiral wound TFC, BME- 4040S, 2400 USGPD permeate @ 2000 mg/l NaCl, 100 psi, 25ºC feed

UNIT DRY WEIGHT: RSLHP4800: 145 lbs. (57.6 kg)

INLET SOLENOID: 220VAC/60hz, normally closed, ¾” FNPT, 0 differential, brass LOW PRESSURE SWITCH: 220VAC/60Hz cut-out @ 15 psi DRIVE PUMP MOTOR: 230VAC/60hz, type 56J frame, 3450 RPM, threaded shaft, ball bearing

DRIVE PUMP: Multi-stage 416SS, stainless discharge, housing and bracket, Noryl impellers and stages, SS bearings, wear rings, couplings and pump shaft. RSL4800: 10 USGPM @ 200 psi (Based on 0 psi inlet pressure)

CONCENTRATE VALVE: Brass needle valve, internally bypassed, metal seated, o-ring packing

RECIRCULATION VALVE: Brass needle valve, metal seated, o-ring packing

SYSTEM FITTINGS: Schedule 40 PVC LOW PRESSURE FITTINGS: Jaco standard pressure compression or DMT push-on LOW PRESSURE TUBING: Higher pressure 1/2” LDPE, clear PRE-FILTRATION HOUSING: 1 X Polypropylene, 20”, 125 psi rated, o-ring seated with threaded cap, pressure release, 1” inlet/outlet, full flow, 20 USGPM maximum

FILTER CARTRIDGE: Polypropylene, 5-micron SPEC RO-SYS-002R5 SMEMBRANE HOUSING: 304 SS body, polyethylene caps, band clamp closure, ¾” FNPT concentrate ports, ½” permeate port, 300 psi rating (optional)

PRESSURE GAUGES: Glycerin filled, stainless body, 2 1/2’’. 0-100 psi pre-filter pressure pre/post, 0-200 psi system pressure

FLOW METERS: Acrylic panel mounted, 0.5-5.0 USGPM or 1.0 - 10.0 USGPM, dependent on model

HIGH PRESSURE RELIEF VALVE: Watts model 3L, bronze body, set at 150 psi for 2400-7200

PERFORMANCE SPECIFICATIONS PERMEATE PRODUCTION RATE: RSLHP4800 2.8 USGPM (10.6 LPM)

Calculated production rate @ feed water of >2000 ppm 25ºC, average system pressure @ 230psi, 50 % recovery, inlet pressure of 50 psi.

WASTE PRODUCTION RATE: Recovery Rate @ 50% Feed Water >2000 TDS RSLHP4800 4.2 USGPM (15.9 LPM)

MEMBRANE CROSSFLOW: RSLHP4800: (1) 12 USGPM (45 LPM) RECOMMENDED FEED WATER PRETREATMENT SPECIFICATIONS: TDS: < 4000 TDS HARDNESS: < 6 gpg (103 mg/l) TOTAL IRON: < .05 ppm TANNIN: < .5 ppm CHLORINE: < .1 ppm pH: 5.5 – 9.5

ORGANIC/MICROBIOLOGICAL ACTIVITY: 0 MANGANESE: < .05 PPM

FEED WATER REQUIREMENTS: RSLHP4800: 7.0 USGPM minimum

R/O RSLHP4800HP

Please note:  These systems are built to order so allow 6-8 weeks for delivery.  Also since these are built to order, all sales are final.
